Reinforced steel

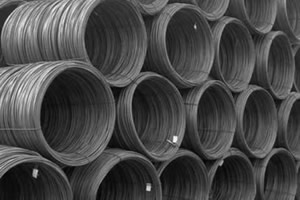

Wire Rod

Tolerance
BDS 4633 / DIN 59 110
Certificate
EN 10 204
Diameter mm Weight kg/m
6,5 0.260
8,0 0.395
10,0 0.617
12,0 0.746

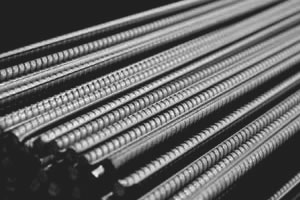

Reinforcing Bars

Tolerance
DIN 488
Certificate
EN 10 204
Diameter  mm Weight kg/m
8,0 0.395
10,0 0.617
12,0 0.888
14,0 1.210
16,0 1.580
18,0 2.000
20,0 2.470
22,0 2.980
25,0 3.850
28,0 4.830
32,0 6.310
Length: 6000 / 12000 mm

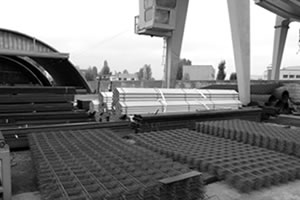

Standart wire mesh

Characteristics
Type Light mesh
Steel Grade Transverse and longitudinal wire: according to BSt500M DIN 488,
produced from cold rolled wire beam SAE1010.
Form – Diameter Sheets 2.15m wide and 4.00 - 6.00m long
Packing – Weight Sheets on rackings, weight from 12.6 to
104.2 kg per sheet, depending on the type.

Dimensions, Weight and Tolerances
Sheet   Dimensions (m) Cross Wires Longitudinal Wires Theor. Sheet Weigh (kg/sheet) Weight (кг/м2)
No. Diameter (мм) Distance (мм) No. Diameter (мм) Distance (мм)
6.00x2.15 40 4 150 15 4 150 17.42 1.35
6.00x2.15 60 4 100 22 4 100 26.10 2.02
5.00x2.15 33 5 150 15 5,0/4.2 150 20.31 1.89
6.00x2.15 40 6 150 15 6 150 39.46 3.06
5.00x2.15 33 6 150 15 6 150 32.89 3.06
6.00x2.15 40 8 150 15 8 150 70.22 5.44
6.00x2.15 30 5 200 11 5 200 20.10 1.56
6.00x2.15 30 6 200 11 6 200 29.00 2.25
6.00x2.15 30 8 200 11 8 200 51.55 4.00
