Hot rolled and hot-dip galvanized products

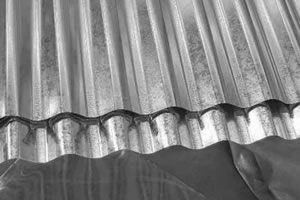

Hot DIP Galvanized sheets and coils

Tolerance
BDS EN 10143
Certificate
EN 10 204
Sheets
Thickness s (mm) Sheet sizes(mm)
1000/2000 1250/2500
Weight(kg)
0.35 5.50 8.59
0.40 6.28 9.81
0.50 7.85 12.27
0.60 9.42 14.72
0.70 10.99 17.17
0.80 12.56 19.63
1.00 15.70 24.53
1.20 18.84 29.44
1.50 23.55 36.80
2.00 31.40 49.06
2.50 39.25 61.33
3.00 47.10 73.60
4.00 62.80 98.13

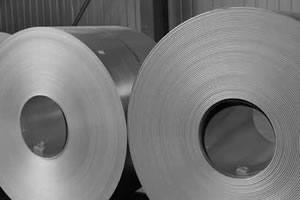

Coils
Thickness s(mm) Widht(mm)
0,40 - 2,5 1000; 1250
Inside diameter 600 mm ± 20 %
Outside diameter 1100 - 1400 mm

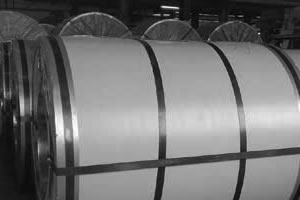

Pre – painted coils

Tolerance
BDS EN 10169-Т1
Certificate
EN 10 204
Coils
Thickness s (mm) Widht (mm)
0,35 - 1,5 1000; 1075;1250;1300
Inside diameter: 600 mm ± 20 %
Outside diameter: 1100 - 1400 mm
Color by RAL

Hot Rolled steel

Tolerance
BDS EN 10051
Certificate
EN 10 204
HR sheets
Thickness s (mm) Sheets sizes(mm)
1000/2000 1250/2500 1250/4000 1250/6000 1500/6000
Weight per sheet(kg)
1.50 23.55 36.80 37.80 - -
2.00 31.40 49.06 78.50 - -
2.50 39.25 61.33 98.13 - -
3.00 47.10 73.59 117.75 - -
4.00 62.80 98.13 157.00 235.50 282.60
5.00 78.50 122.66 198.40 294.38 353.25
6.00 94.20 147.19 235.04 353.25 423.90
8.00 125.60 196.25 314.00 471.00 565.20
10.00 157.00 245.32 392.52 588.75 706.50
12.00 188.40 294.38 471.00 706.50 847.80

HR coils

Thickness s(mm) Widht of the coils(mm)
1,5 - 12,0 1000; 1250; 1500
Inside diameter 850 mm ± 7 %
Outside diameter 1100 - 1900 mm

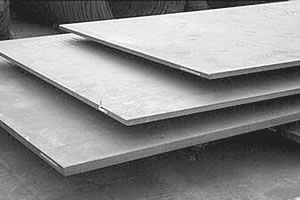

HR Heavy plates

Tolerance
BDS EN 10029
Certificate
EN 10 204
Thickness s(mm) Sheet sizes(mm)
1500/6000 2000/6000 2000/8000
Weight per sheet(kg)
14 989 1319 1758
15 1060 1413 1884
16 1130 1507 2010
18 1272 1696 2261
20 1413 1884 2512
22 1554 2072 2763
25 1766 2355 3140
30 2120 2826 3768
35 2473 3297 4396
40 2826 3768 5024
50 3533 4710 6280
60 4239 5652 7536
