Cold Rolled Sheets and Coils

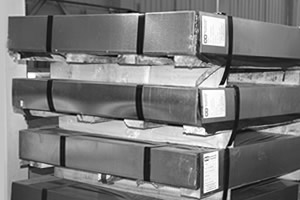

CR sheets

Tolerance
BDS EN 10051
Certificate
EN 10 204
CR sheets
Thickness s(mm) Sheet sizes (mm)
1000/2000 1250/2500
Weight(kg)
0.40 6.28 9.81
0.50 7.85 12.27
0.60 9.42 14.72
0.70 10.99 17.17
0.80 12.56 19.63
0.90 14.13 22.08
1.00 15.70 24.53
1.20 18.84 29.44
1.40 21.98 34.34
1.50 23.55 36.80
1.80 28.26 44.16
2.00 31.40 49.06

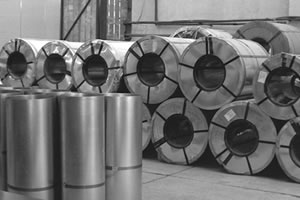

CR coils

Tolerance
BDS EN 10051
Certificate
EN 10 204
Thickness s (mm) Widht(mm)
0,38 - 2,0 1000; 1250
Inside diameter 600 mm ± 20 %
Outside diameter 1100 - 1400 mm
