Trapezoid and sinusoidal profiles

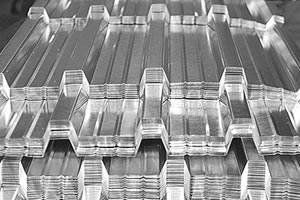

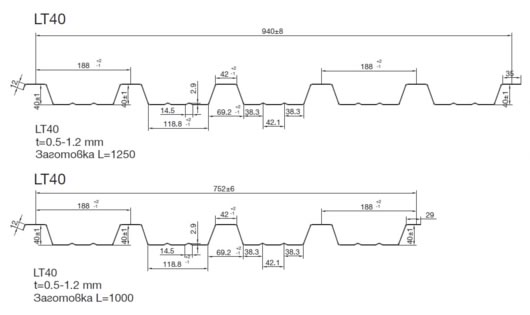

Trapeze LT 40

Tolerance
DIN 59 110
Certificate
EN 10 204
Profile /mm/ Weight per m2 concerning the overlap area
0,5 5,24
0,6 6,29
0,7 7,34
0,75 7,86
0,8 8,39
1,0 10,49

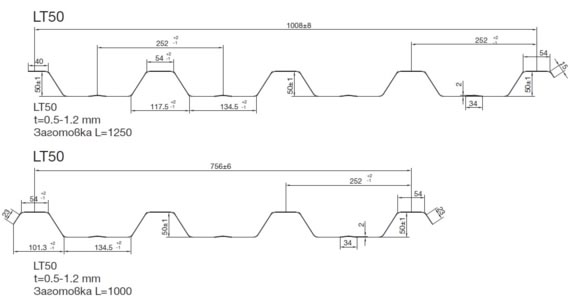

Trapeze LT 50

Profile /mm/ Weight per m2 concerning the overlap area
0,5 4,89
0,6 5,86
0,7 6,85
0,75 7,32
0,8 7,82
1,0 9,77

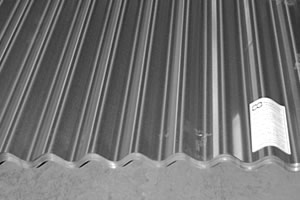

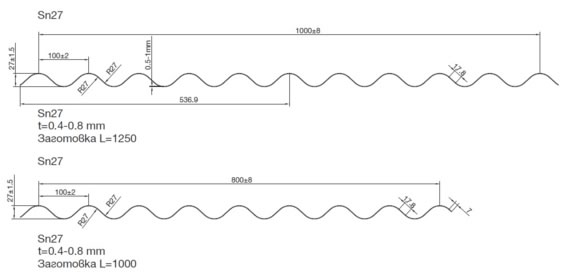

Wave 27

Profile /mm/ Weight per m2 concerning the overlap area
0,5 4,93
0,6 5,92
0,7 6,91
0,75 7,40
0,8 7,89
1,0 9,86

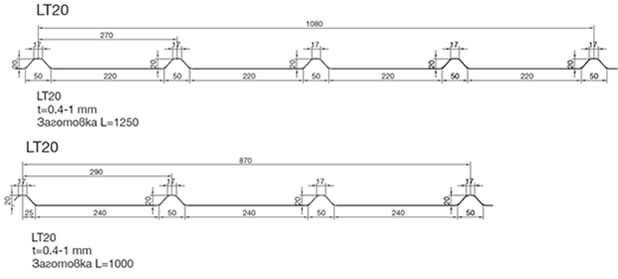

LT 20 /two schemes/
