Dry construction profiles

We are the biggest manufacturer of precise dry construction profiles in Bulgaria. The total average monthly amount of the sales of our profiles for the country and for export into the European Union is approximately 2 000 000 linear meters.

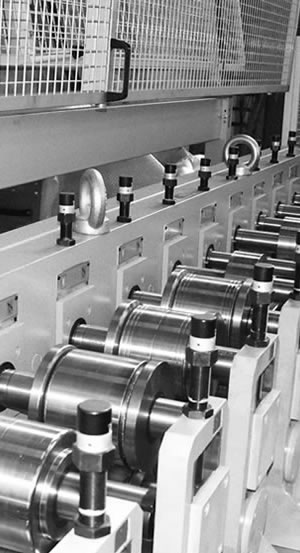

Profiles are manufactured on new automated lines, made in Italy, according to DIN EN 18182/1 and the Construction Products Directive 89/106 EEC of the European Union, while strictly observing the European norms on packaging and marking. Balkan Steel Engineering has sales in 8 countries of the European Union and in all countries from south-western Europe.

Zinc plated sheet metal, of which these profiles are manufactured, is supplied only from European metallurgical companies and has all the necessary certificates and declarations of conformity. Balkan Steel Engineering sends samples for approval and analysis to its customers in case of a preliminary request.

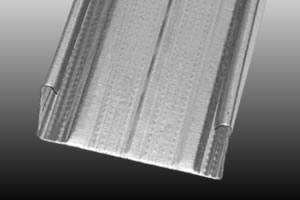

CD

for falce ceilings and facings
according to DIN18182 part 1
nominal dimensions 60х27
length thikness weight/kg in a brunch in a bundle
meters mm m. linear number profile length/m. weight/kg number a brunch length/m. weight/kg
3 0.5 0.475 12 36 17 24 864 410
4 12 48 23 24 1152 547
3 0.6 0.555 12 36 20 24 864 480
4 12 48 27 24 1152 639

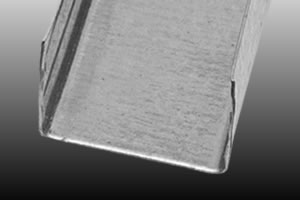

UD

for falce ceilings and facings
according to DIN18182 part 1
nominal dimensions 28х24,5
length thikness weight/kg in a brunch in a bundle
meters mm m. linear number profile length/m weight/kg number a brunch length/m weight/kg
3 0.5 0.27 24 72 19 24 1728 467
4 24 96 26 24 2304 622
3 0.6 0.33 24 72 24 24 1728 570
4 24 96 32 24 2304 760

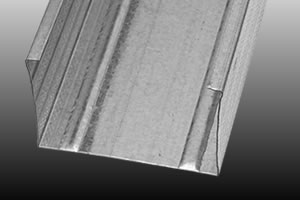

CW50, CW75, CW100

for partitions and facings
with H holes
according to DIN18182 part 1
CW50
nominal dimensions 48,5х48,8х47
length thikness weight/kg in a brunch in a bundle
meters mm m. linear number profile length/m weight/kg number a brunch length/m weight/kg
3 0.5 0.57 12 36 21 12 432 246
4 12 48 27 12 576 328
3 0.6 0.695 12 36 25 12 432 300
4 12 48 33 12 576 400
CW75
nominal dimensions 48,5х73,8х47
length thikness weight/kg in a brunch in a bundle
meters mm m. linear number profile length/m weight/kg number a brunch length/m weight/kg
3 0.5 0.645 12 36 23 12 432 279
4 12 48 31 12 576 372
3 0.6 0.81 12 36 29 12 432 350
4 12 48 39 12 576 467
CW100
nominal dimensions 48,5х98,8х47
length thikness weight/kg in a brunch in a bundle
meters mm m. linear number profile length/m weight/kg number a brunch length/m weight/kg
3 0.5 0.74 12 36 27 12 432 320
4 12 48 36 12 576 426
3 0.6 0.925 12 36 33 12 432 400
4 12 48 44 12 576 533

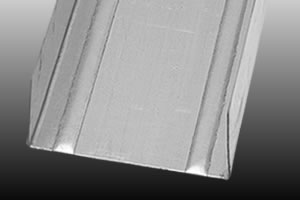

UW50, UW75, UW100

for partitions and facings
holes Ф6 or Ф8
according to DIN18182 part 1
UW50
nominal dimensions 50х40
length thikness weight/kg in a brunch in a bundle
meters mm m. linear number profile length/m weight/kg number a brunch length/m weight/kg
3 0.5 0.44 12 36 16 12 432 190
4 12 48 21 12 576 253
3 0.6 0.53 12 36 19 12 432 229
4 12 48 25 12 576 305
UW75
nominal dimensions 75х40
length thikness weight/kg in a brunch in a bundle
meters mm m. linear number profile length/m weight/kg number a brunch length/m weight/kg
3 0.5 0.55 12 36 20 12 432 238
4 12 48 26 12 576 317
3 0.6 0.665 12 36 24 12 432 287
4 12 48 32 12 576 383
UW100
nominal dimensions 100х40
length thikness weight/kg in a brunch in a bundle
meters mm m. linear number profile length/m weight/kg number a brunch length/m weight/kg
3 0.5 0.62 12 36 22 12 432 268
4 12 48 30 12 576 357
3 0.6 0.755 12 36 27 12 432 326
4 12 48 36 12 576 435
